UAV Trinh sát

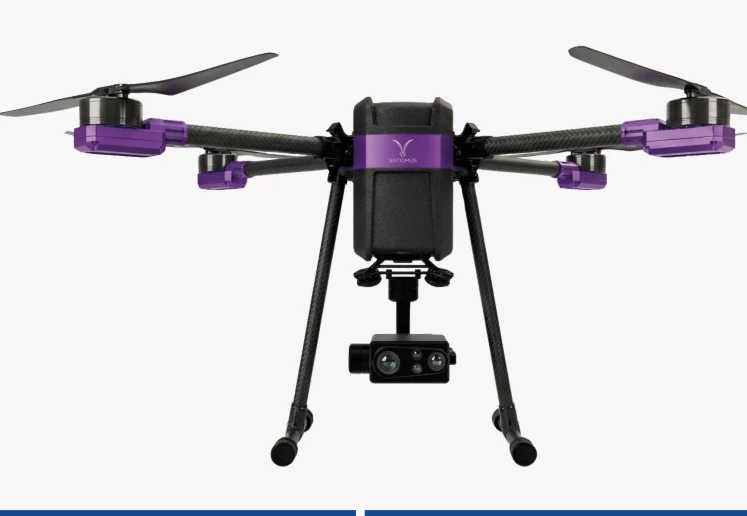

Multi-Sensor Surveillance UAV VATOMUS 850

Enterprise aerial platform tailored for agile inspection missions. Deploys without tools in under 5s, supporting optical, thermal IR, and specialized diagnostic payloads.

KEY SPECIFICATIONS CALIBRATED

Đường chéo trục

850 mm

Tải Trọng / Khối Lượng

1.3 kg

Khối lượng (gồm pin)

8 kg

Khối lượng cất cánh tối đa (MTOW)

13 kg

Thời Gian Tác Chiến

Đến 40 phút / Up to 40 min

Request Technical Quotation

Book Flight Demo Hotline: 0942953131

Technical Architecture

VATOMUS 850 Overview

VATOMUS 850 is an industrial UAV dedicated to versatile surveillance. Featuring a compact vertical folding design, it integrates optical, thermal IR, radar, and LiDAR payloads with CNC aluminum and carbon fiber airframe.

Carbon Fuselage

100% Carbon fiber impact & corrosion resistance.

RTK Guidance

Dual GNSS positioning accurate to ±2cm.

Anti-Jamming Link

FHSS frequency-hopping anti-jamming telemetry.

FIELD DEPLOYMENT TEST PASSED 100%

Key Capabilities

Core Operational Features

Rapid Tool-less Deployment

Patented vertical-folding mechanism allows full field deployment and flight-readiness in under 5 seconds without requiring hand tools.

High-Strength Aerostructure

Aviation-grade CNC aluminum combined with high-modulus carbon fiber for optimal rigidity and lightweight endurance.

Open Sensor Payload Ecosystem

Native MAVLink and ROS compatibility enables seamless integration of EO/IR gimbals, millimeter-wave radar, LiDAR, and multispectral sensors.

Standard & NDAA Variants

Available in Standard enterprise builds and NDAA-compliant configurations meeting stringent international supply chain regulations.

Technical Specifications

Detailed Specifications & Performance Sheet

SPECIFICATION PARAMETER CERTIFIED VALUE

Wheelbase (Diagonal)

850 mm

Recommended Payload

1.3 kg

Weight (incl. Battery)

8 kg

Max Takeoff Weight (MTOW)

13 kg

Unfolded Dimensions

730 × 670 × 490 mm

Folded Dimensions

345 × 280 × 490 mm

Battery System

Li-ion 12S4P, 20.000 mAh

Max Hover Time (No Payload)

Đến 45 phút / Up to 45 min

Endurance with 1.3 kg Payload

Đến 40 phút / Up to 40 min

Standard Variant Specs

GPS/FC/PDB: Holybro | ESC: MAD | Động cơ: SunnySky | Cánh: EOLO

NDAA Variant Specs

GPS/FC: CubePilot | PDB: Airbot | ESC/Động cơ/Cánh: KDE Direct

* Parameters measured under standard atmospheric conditions. Custom configurations available upon mission inquiry. Request custom payload configuration →
