FIRST AID S1100
Trang chủ / Sản phẩm / FIRST AID S1100
KHÍ TÀI UAVF CHUYÊN DỤNG

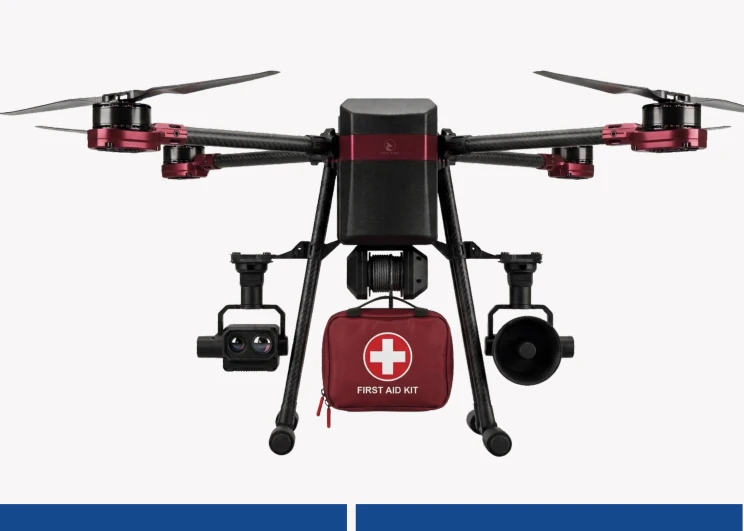

Emergency Medical Logistics UAV FIRST AID S1100

Mission-critical aerial supply drone for rapid delivery of medical relief kits, defibrillators, and emergency cargo into inaccessible terrains.
KEY SPECIFICATIONS CALIBRATED
Đường chéo trục
1.100 mm
Tải Trọng / Khối Lượng
5 kg
Khối lượng (gồm pin)
13 kg
Khối lượng cất cánh tối đa (MTOW)
23 kg
Thời Gian Tác Chiến
Đến 30 phút / Up to 30 min
Technical Architecture

FIRST AID S1100 Overview

Engineered to establish immediate aerial supply corridors during critical disaster response missions. Capable of lifting 5 kg payloads for 30 minutes to provide life-saving medicine and emergency supplies.

Carbon Fuselage

100% Carbon fiber impact & corrosion resistance.

RTK Guidance

Dual GNSS positioning accurate to ±2cm.

Anti-Jamming Link

FHSS frequency-hopping anti-jamming telemetry.

FIRST AID S1100
FIELD DEPLOYMENT TEST PASSED 100%
Key Capabilities

Core Operational Features

Powered by autonomous machine vision and mission-critical aviation avionics.

Sub-5s Rapid Deployment

Advanced folding arm structure ensures field assembly and launch readiness within under 5 seconds.

Heavy-Lift Aerostructure

Aviation-grade CNC aluminum and high-density carbon fiber framing deliver superior aerodynamic thrust reserves.

Modular Mission Payload

Quick-swap payload bays compatible with automatic drop boxes, motorized winches, high-intensity searchlights, and megaphones.

Dual Standard & NDAA Tiers

Choose between cost-optimized Standard configurations or security-hardened NDAA-compliant builds.

Technical Specifications

Detailed Specifications & Performance Sheet

SPECIFICATION PARAMETER CERTIFIED VALUE
Wheelbase (Diagonal)
1.100 mm
Recommended Payload
5 kg
Weight (incl. Battery)
13 kg
Max Takeoff Weight (MTOW)
23 kg
Unfolded Dimensions
950 × 870 × 550 mm
Folded Dimensions
450 × 365 × 550 mm
Battery System
Li-ion 12S6P, 30.000 mAh
Max Flight Time (No Payload)
Đến 45 phút / Up to 45 min
Flight Time with 5 kg Payload
Đến 30 phút / Up to 30 min
Standard Variant Specs
GPS/FC/PDB: Holybro | ESC: MAD | Động cơ: SunnySky | Cánh: EOLO
NDAA Variant Specs
GPS/FC: CubePilot | PDB: Airbot | ESC/Động cơ/Cánh: KDE Direct
* Parameters measured under standard atmospheric conditions. Custom configurations available upon mission inquiry. Request custom payload configuration →
